/ Product catalogue / Air handling units / Counterflow residential AHU / Vertical Units / Reneo S

Series Blauberg Reneo S

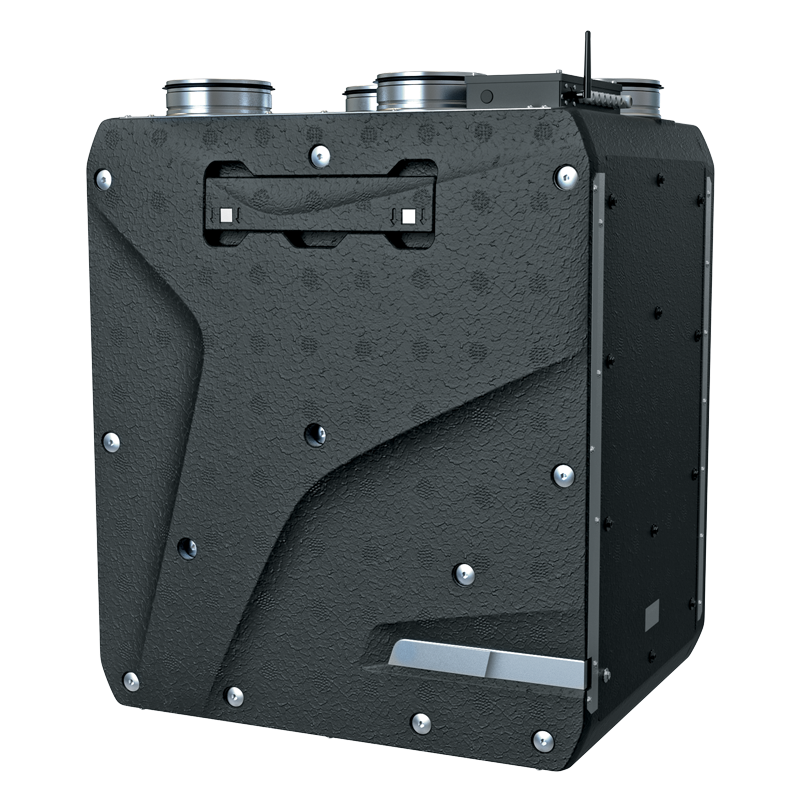

Series Blauberg Reneo S - Vertical Units - Counterflow residential AHU
Heat and energy recovery air handling units
  • Heat exchanger type: Counter flow
  • Heat exchanger material: Polystyrene, Enthalpy
  • Sound-insulated casing
  • Bypass: Manual
  • BMS protocol: ModBus
  • CO2 sensor: Optional
  • PM2.5 sensor: Optional
  • Air handling units for efficient supply and exhaust ventilation in flats, houses, cottages and other buildings.
  • EPP casing with its aerodynamic shape and excellent insulation characteristics.
  • The Reneo S units are equipped with a bypass, which can be opened if there is a need to cool down the ventilated area with cool intake air.
  • The units are available with a counter-flow polystyrene heat exchanger or an enthalpy counter-flow heat exchanger.
  • Available for installation with S21 controller.
  • The Reneo S 350 is designed for suspended ceiling mounting, floor mounting, vertical or horizontal wall mounting.

The Reneo S 351 units have flat service hatch design, suitable for decorative panel installation (delivered separately).

EPP casing
Blauberg Reneo S is made from a modern material – extruded polypropylene (ЕРР). The material is very light, which allows to decrease the total weight of the system and ensures easy installation. ЕРР resists corrosion, preserving the product’s long-term high efficiency. It also has a low thermal conductivity, allowing to decrease heat losses in the ventilation system. This ensures more effective system operation and reduces air conditioning and heating expenses.

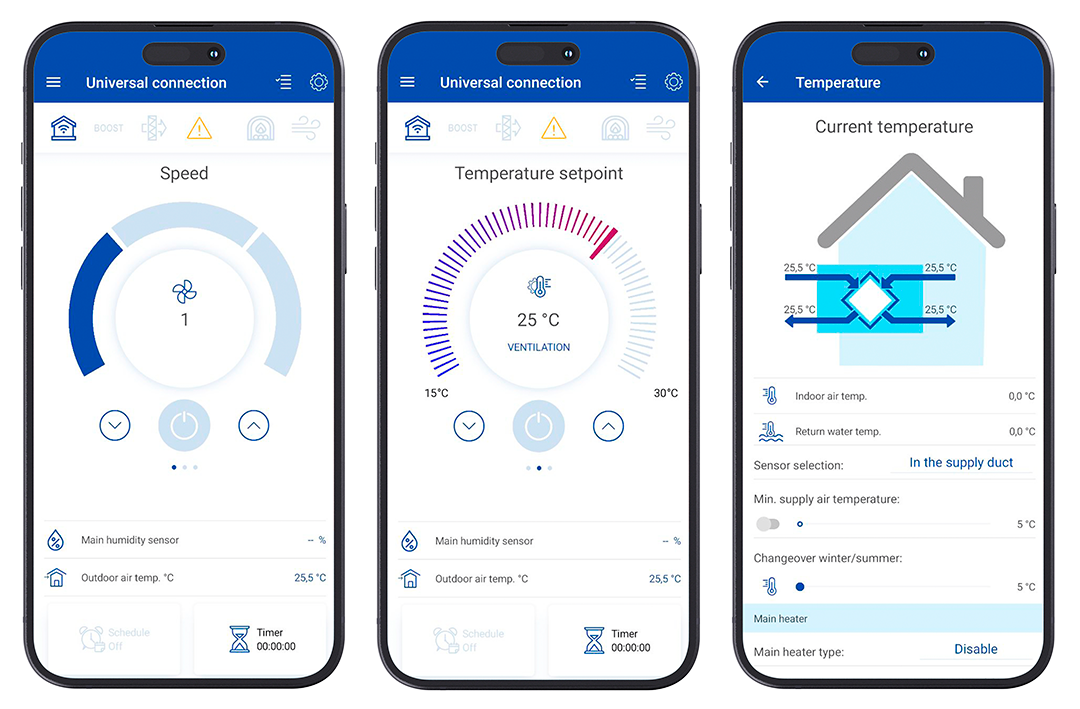

All functions in your smartphone
Reneo – it’s not just ventilation, it’s a real climate station in your home. With the S21 controller you can control all functions and parameters via the mobile app (the controller is not included in the delivery set).
AND EVEN MORE

Just say «Hello Google» and test, control and run Reneo in English, German, Swedish, Norwegian, Danish, Polish, Dutch, French, Spanish*.

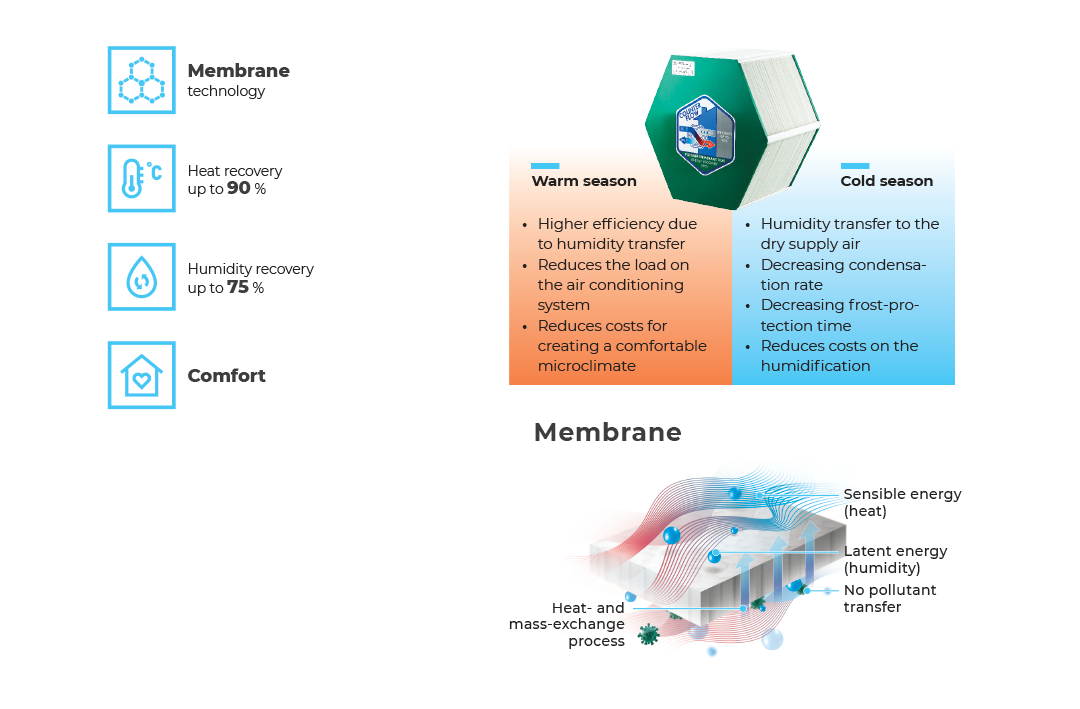

Enthalpy heat exchanger
If air humidity management is just as important for you as temperature management, then enthalpy heat exchanger is your best choice (The Reneo S...-E unit).

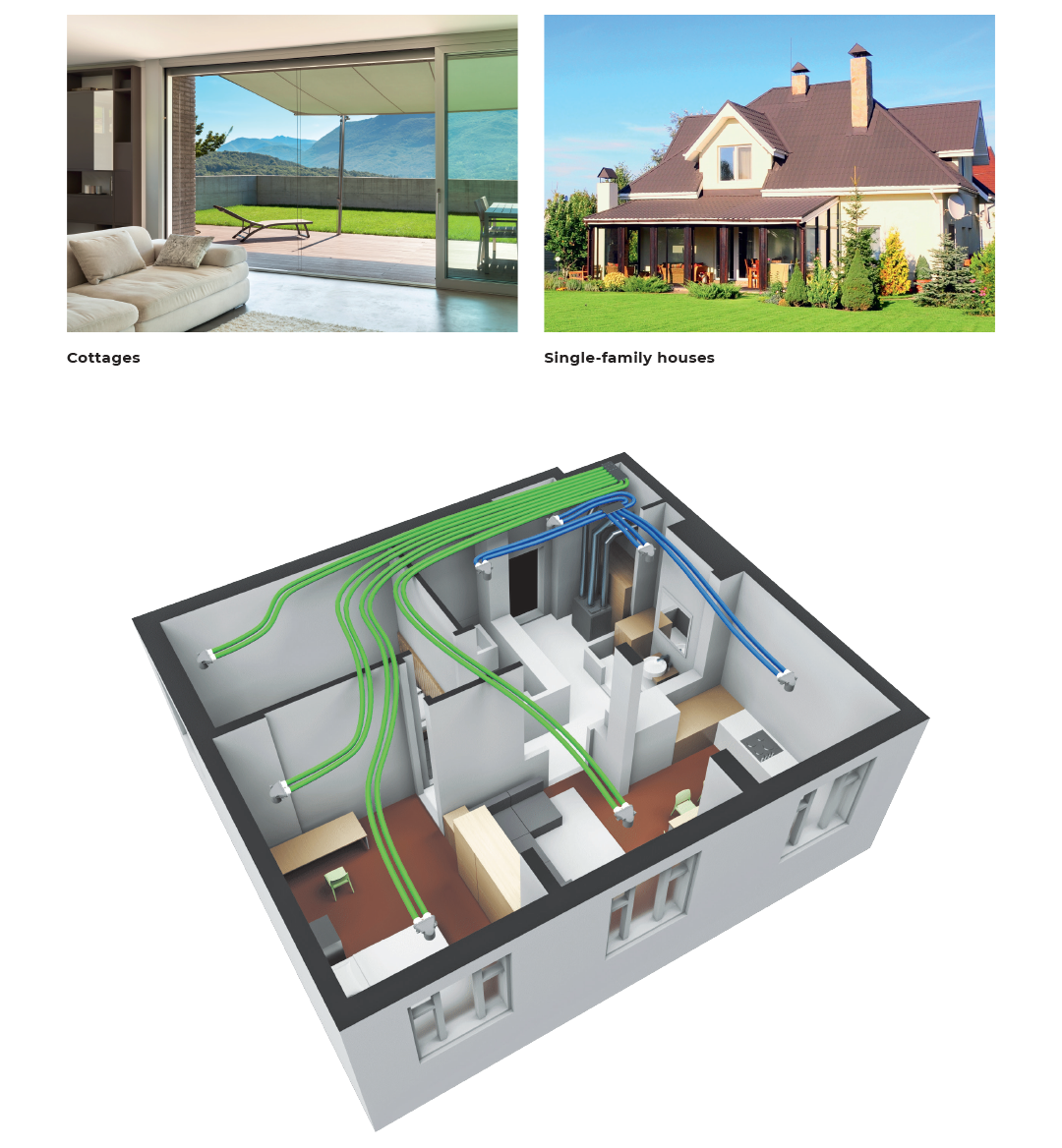

Application
Lineup Blauberg Reneo S Connected air duct size, mm Rated power, W Maximum airflow, m³/h Service side Control system Preheater Reheater BMS protocol
Blauberg Reneo S 210 R S21 Reneo S 210 R S21
125 125 277 Right S21 Optional ModBus
Blauberg Reneo S 210-E R S21 Reneo S 210-E R S21
125 125 277 Right S21 Optional ModBus
Blauberg Reneo SE 210 R S21 Reneo SE 210 R S21
125 125 277 Right S21 Built-in Optional ModBus
Blauberg Reneo SE 210-E R S21 Reneo SE 210-E R S21
125 125 277 Right S21 Built-in Optional ModBus
Blauberg Reneo S 240 R S21 CF Reneo S 240 R S21 CF
125 190 235 Right S21 Optional ModBus
Blauberg Reneo S 240-E R S21 CF Reneo S 240-E R S21 CF
125 190 235 Right S21 Optional ModBus
Blauberg Reneo SE 240 R S21 CF Reneo SE 240 R S21 CF
125 190 235 Right S21 Built-in Optional ModBus
Blauberg Reneo SE 240-E R S21 CF Reneo SE 240-E R S21 CF
125 190 235 Right S21 Built-in Optional ModBus
Blauberg Reneo S 270 R S21 Reneo S 270 R S21
125 182 331 Right S21 Optional ModBus
Blauberg Reneo S 270-E R S21 Reneo S 270-E R S21
125 182 331 Right S21 Optional ModBus
Blauberg Reneo SE 270 R S21 Reneo SE 270 R S21
125 182 331 Right S21 Built-in Optional ModBus
Blauberg Reneo SE 270-E R S21 Reneo SE 270-E R S21
125 182 331 Right S21 Built-in Optional ModBus
Blauberg Reneo S 350 R S21 Reneo S 350 R S21
160 213 410 Right S21 Optional ModBus
Blauberg Reneo S 350-E R S21 Reneo S 350-E R S21
160 213 410 Right S21 Optional ModBus
Blauberg Reneo SE 350 R S21 Reneo SE 350 R S21
160 213 410 Right S21 Built-in Optional ModBus
Blauberg Reneo SE 350-E R S21 Reneo SE 350-E R S21
160 213 410 Right S21 Built-in Optional ModBus
Blauberg Reneo S 351 R S21 Reneo S 351 R S21
160 213 410 Right S21 Optional ModBus
Blauberg Reneo S 351-E R S21 Reneo S 351-E R S21
160 213 410 Right S21 Optional ModBus
Blauberg Reneo SE 351 R S21 Reneo SE 351 R S21
160 213 410 Right S21 Built-in Optional ModBus
Blauberg Reneo SE 351-E R S21 Reneo SE 351-E R S21
160 213 410 Right S21 Built-in Optional ModBus
Blauberg Reneo S 380 R S21 CF Reneo S 380 R S21 CF
160 247 390 Right S21 Optional ModBus
Blauberg Reneo S 380-E R S21 CF Reneo S 380-E R S21 CF
160 247 390 Right S21 Optional ModBus
Blauberg Reneo SE 380 R S21 CF Reneo SE 380 R S21 CF
160 247 390 Right S21 Built-in Optional ModBus
Blauberg Reneo SE 380-E R S21 CF Reneo SE 380-E R S21 CF
160 247 390 Right S21 Built-in Optional ModBus
Blauberg Reneo S 381 R S21 CF Reneo S 381 R S21 CF
160 247 390 Right S21 Optional ModBus
Blauberg Reneo S 381-E R S21 CF Reneo S 381-E R S21 CF
160 247 390 Right S21 Optional ModBus
Blauberg Reneo SE 381 R S21 CF Reneo SE 381 R S21 CF
160 247 390 Right S21 Built-in Optional ModBus
Blauberg Reneo SE 381-E R S21 CF Reneo SE 381-E R S21 CF
160 247 390 Right S21 Built-in Optional ModBus
Blauberg Reneo S 400 R S21 Reneo S 400 R S21
160 178 445 Right S21 Optional Optional ModBus
Blauberg Reneo S 400-E R S21 Reneo S 400-E R S21
160 178 445 Right S21 Optional Optional ModBus
Blauberg Reneo SE 400 R S21 Reneo SE 400 R S21
160 178 445 Right S21 Built-in Optional ModBus
Blauberg Reneo SE 400-E R S21 Reneo SE 400-E R S21
160 178 445 Right S21 Built-in Optional ModBus
Blauberg Reneo S 401 R S21 Reneo S 401 R S21
160 178 445 Right S21 Optional Optional ModBus
Blauberg Reneo S 401-E R S21 Reneo S 401-E R S21
160 178 445 Right S21 Optional Optional ModBus
Blauberg Reneo SE 401 R S21 Reneo SE 401 R S21
160 178 445 Right S21 Built-in Optional ModBus
Blauberg Reneo SE 401-E R S21 Reneo SE 401-E R S21
160 178 445 Right S21 Built-in Optional ModBus
Blauberg Reneo S 550 R S21 Reneo S 550 R S21
200 346 720 Right S21 Optional ModBus
Blauberg Reneo S 550-E R S21 Reneo S 550-E R S21
200 346 720 Right S21 Optional ModBus
Blauberg Reneo SE 550 R S21 Reneo SE 550 R S21
200 346 720 Right S21 Built-in Optional ModBus
Blauberg Reneo SE 550-E R S21 Reneo SE 550-E R S21
200 346 720 Right S21 Built-in Optional ModBus
Datasheet
Reneo S - data sheet
2.74 Mb
Manual
Reneo S 210/270, 240 CF - user's manual (B282EN-02)
6.81 Mb
Manual
Reneo S 350/380/400/550 - user's manual (B279EN-03)
7.86 Mb
Manual
S21 - user's manual (B55-8EN-05)
626 Kb
Manual
S14 - user's manual (B55-7EN-02)
1.31 Mb
Manual
S14 software "Zero Service Software"
18.32 Mb
Manual
Modbus table for connecting S21 automation to BMS - user's manual (B55-8-1EN-02)
141 Kb
BIM/CAD-models
Reneo S 210/270, 240 CF - BIM model
3.01 Mb
BIM/CAD-models
Reneo S 350(-E) 380(-E) CF 550(-E) - BIM model
2.13 Mb
BIM/CAD-models
Reneo S(E) 210(-E) R - CAD model
1.79 Mb
BIM/CAD-models
Reneo S(E) 270(-E) L - CAD model
1.84 Mb
BIM/CAD-models
Reneo S(E) 270(-E) R - CAD model
1.79 Mb
BIM/CAD-models
Reneo S(E) 210(-E) L - CAD model
1.84 Mb
BIM/CAD-models
Reneo S(E) 350(-E) L - CAD model
1.2 Mb
BIM/CAD-models
Reneo S(E) 350(-E) R - CAD model
1.26 Mb
