Series Blauberg BlauCool BLHV-R MINI

Outdoor units MINI-series

HIGH EFFICIENCY DC MOTOR

WIDE OUTDOOR OPERATION RANGE

Max. cooling operating temperature is designed up to 50 °C. Heating operating temperature is down to -20 °C. In the cold winter, system can heat the room continuously.
Outdoor unit running at temperature above 50 °C need customized in factory, please consult to sales engineer.

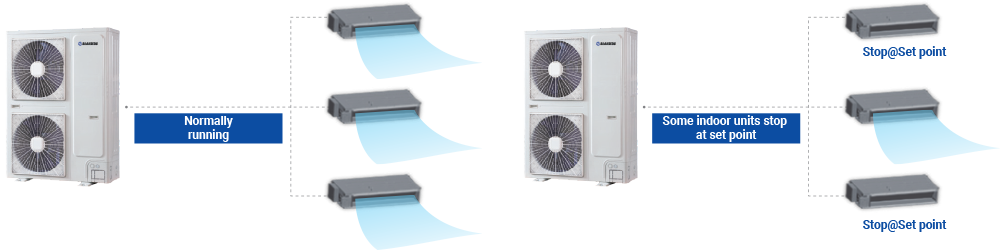

FAST COOLING AND HEATING

Every rooms meet set point most quickly and comfortably by optimized refrigerant control.

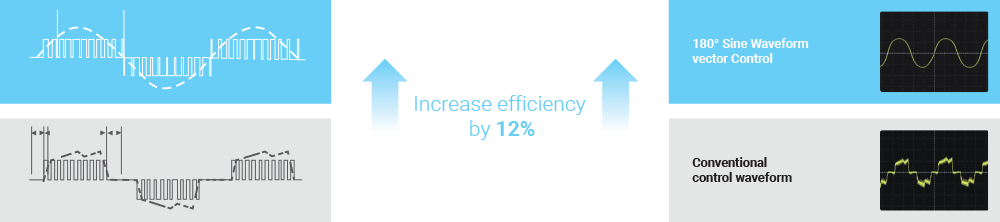

180° SINE WAVE CONTROL

The perfect combination of 180° Sine wave rotor frequency drive control technology and excellent IPM inverters, reduces the reactive loss of motor-driven, increases motor efficiency by 12%.

INTELLIGENT DEFROSTING PROGRAM

Program starts only when unit needs to. Whereas conventional unit's defrosting timing & duration is fixed, causing fluctuations in temperature and personal comfort.

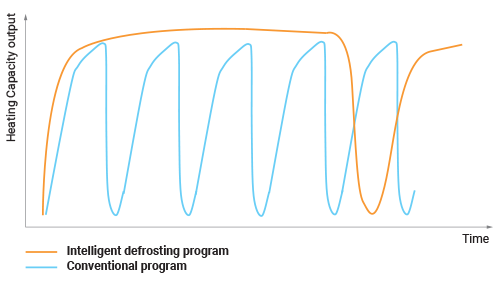

Defrost curve

Conventional unit's defrosting timing & duration is fixed.
Intelligent defrosting program starts according to heat exchanging efficiency & capacity change due to the frost. Less temperature fluctuations, people feel more comfortable.

SILENT TECHNOLOGY

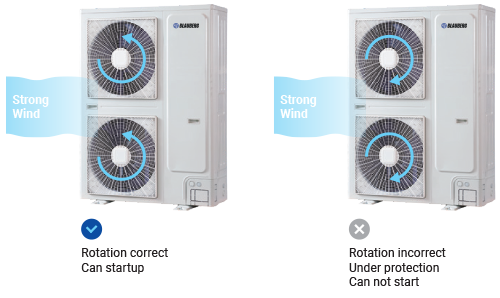

FAN REVERSAL PROTECTION

In standby, if the outdoor fan motor is rotating in opposite direction at a high speed by the wind or other natural factors, the unit can't start so as to keep the fan motor from broken down, it will start when the fan motor speed slow down.

HIGH EFFICIENCY

Refrigerant cooling technology for PCB.
The radiation fin is made of aluminum panels fitting together seamlessly.
This helps to cool down the IPM, it has better performance compared to air cooling for PCB.
The outdoor unit has capability to run in max. 55 °C ambient temperature.

AUTOMATICALLY ADDRESSING

Automatically addressing: system will distribute address to indoor unit automatically.
Automatic addressing will reduce artificial faults and manual works.

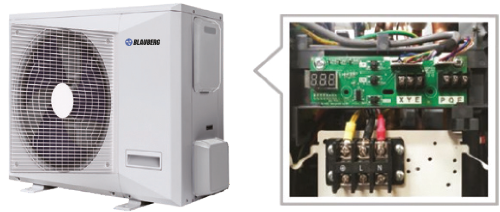

INDEPENDENT DISPLAY BOARD

LOWER NOISE

COMPACT APPEARANCE

WIDE OUTDOOR OPERATION RANGE

Because of refrigerant cooling design, the cooling ambient temperature range is up to 55 °C.
Heating ambient temperature is down to -15 °C, in cold weather, BLHV Mini VRF has capability to heat the room continuously.

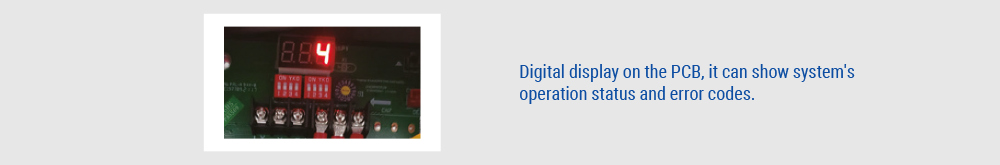

EASY MAINTENANCE WINDOW

LED display on the PCB: this is available to show operation status and error codes of the system.

Lineup Blauberg BlauCool BLHV-R MINI	Cooling capacity, kW	Heating capacity, kW	EER	Refrigerant	COP
BlauCool BLHV-R080-O/1R1A	8	9	3.08	R410A	3.4
BlauCool BLHV-R100-O/1R1A	10	11	3.33	R410A	3.55
BlauCool BLHV-R125-O/1R1A	12.5	14	3.91	R410A	3.98
BlauCool BLHV-R140-O/1R1A	14	16	3.73	R410A	4
BlauCool BLHV-R160-O/1R1A	16	17	3.37	R410A	3.86
BlauCool BLHV-R125-O/3R1A	12.5	14	3.7	R410A	4.29
BlauCool BLHV-R140-O/3R1A	14	16	3.68	R410A	4.03
BlauCool BLHV-R160-O/3R1A	16	18	3.53	R410A	3.91
BlauCool BLHV-R180-O/3R1A	18	20	3.47	R410A	3.98
BlauCool BLHV-R200-O/3R1A	20	22	3.38	R410A	4.11
BlauCool BLHV-R224-O/3R1A	22.4	24	3.32	R410A	4.27
BlauCool BLHV-R260-O/3R1A	26	28.5	3.45	R410A	4.21
BlauCool BLHV-R280-O/3R1A	28	31.5	3.37	R410A	3.85
BlauCool BLHV-R335-O/3R1A	33.5	37.5	3.54	R410A	4.17
