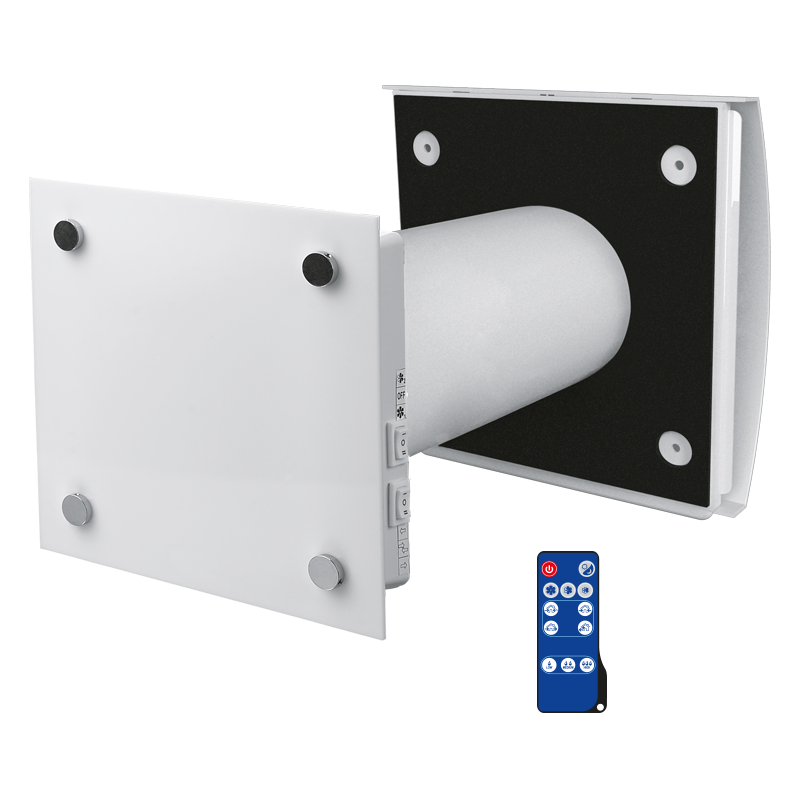

/ Product catalogue / Decentralized ventilation units / Decentralized HRU for residential buildings / Advanced / VENTO Ergo A50-1 Pro V.3 / VENTO Ergo A50-1 Pro V.3
| Unit of measurement | VENTO Ergo A50-1 Pro V.3 | |||
| Phases | - | 1 | ||
| Minimum supply voltage | V | 100 | ||
| Maximum supply voltage | V | 240 | ||
| Power supply frequency | Hz | 50/60 | ||
| Rated power | W | 4.50 | 5.00 | 7.00 |
| Unit current | A | 0.024 | 0.026 | 0.039 |
| Air flow in ventilation mode | m³/h | 20 | 35 | 50 |
| Air flow in heat recovery mode | m³/h | 10 | 18 | 25 |
| Rotation speed at 50hz | - | 610 | 800 | 1450 |
| Sound pressure level LpA at 3 m | dB(A) | 13 | 20 | 23 |
| Sound pressure level LpA at 1 m | dB(A) | 22 | 29 | 32 |
| Heat recovery efficiency, max | % | 88 | ||
| Heat exchanger type | - | Regenerative | ||
| Heat exchanger material | - | Ceramic | ||
| Transported air temperature (max) | °С | 40 | ||
| Transported air temperature (min) | °С | -20 | ||
| Ambient air temperature min | °С | 1 | ||
| Ambient air temperature max | °С | 40 | ||
| Ingress protection rating | - | IP24 | ||
| Ambient air humidity max | % | 65 | ||

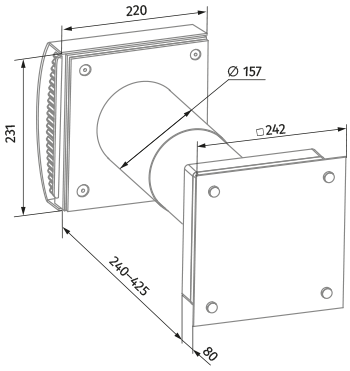

| Maximum wall thickness | mm | 425 | ||
| Trademark | Blauberg | |||||
| Model | VENTO Ergo A50-1 Pro V.3 | |||||
| Specific energy consumption (SEC) (kWh/(m²/a)) | Cold | Average | Warm | |||
| -81.8 | A+ | -39.3 | A | -14.9 | E | |
| Type of ventilation unit | Bidirectional | |||||
| Type of drive installed | 3-speed | |||||
| Type of heat recovery system | Regenerative | |||||
| Thermal efficiency of heat recovery (%) | 80 | |||||
| Maximum flow rate (m³/h) | 50 | |||||
| Electric power input (W) | 7 | |||||
| Reference flow rate (m³/s) | 0.005 | |||||
| Specific power input (SPI) (W/(m³/h)) | 0.286 | |||||
| Control typology | Local demand control | |||||
| Airflow sensitivity at +20 Pa and -20 Pa (%) | 0.4 | |||||
| Declared typology | RVU BVU | |||||
| Sound power level (dB(A)) | 37 | |||||
| The annual electricity consumption (AEC) (kWh/a) | Cold | Average | Warm | |||
| 206 | 206 | 206 | ||||
| The annual heating saved (AHS) (kWh/a) | Cold | Average | Warm | |||
| 87 | 44 | 20 | ||||
| Name | Photo | Description |
|---|---|---|

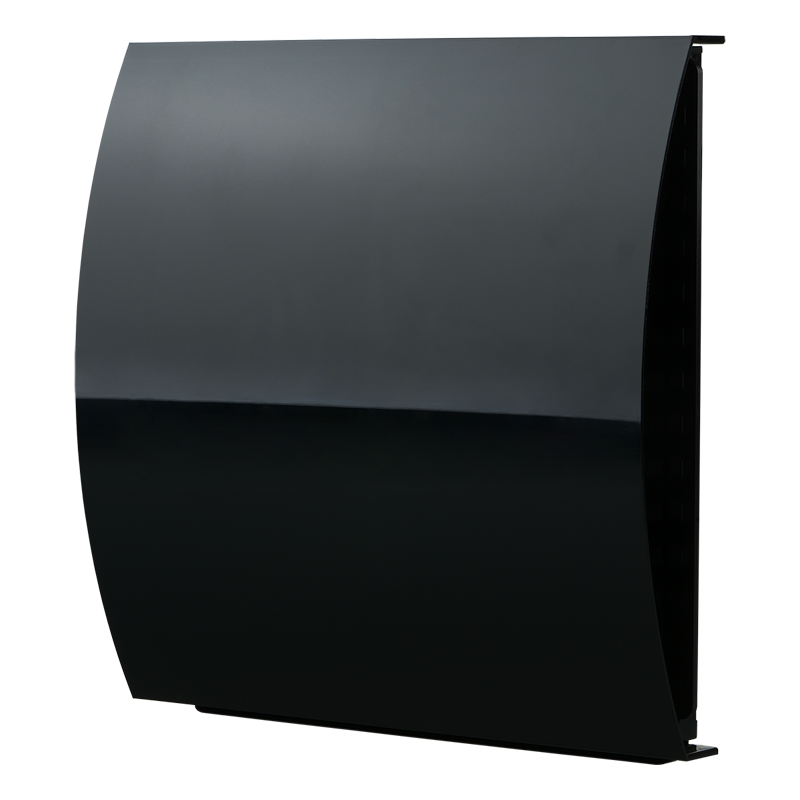

| Blauberg AH-10 black 160 |
|
Plastic hoods decoration of supply and exhaust vents of public, residential and industrial ventilation systems |

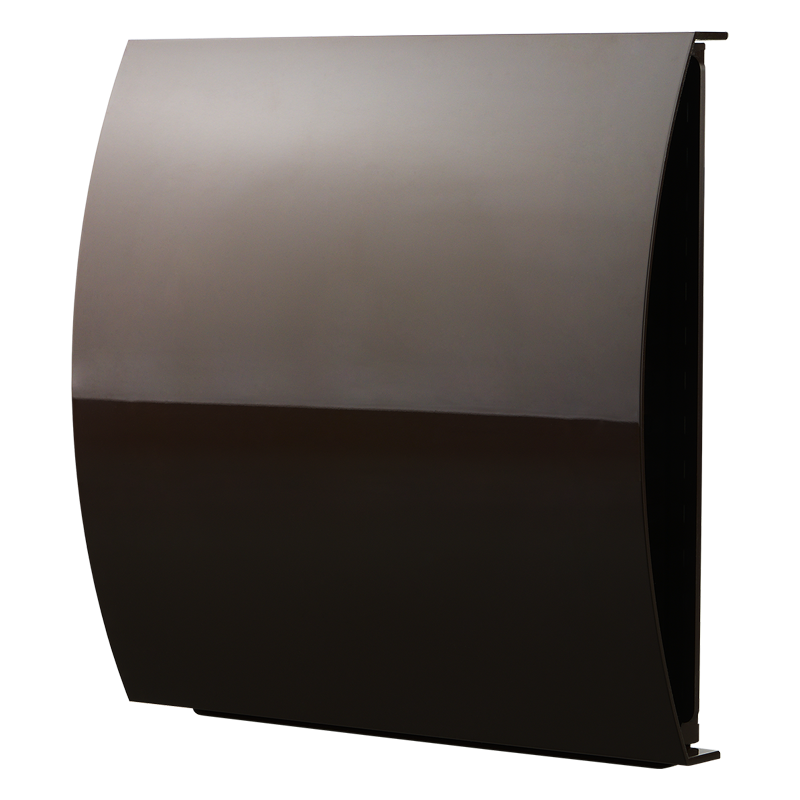

| Blauberg AH-10 brown 160 |
|
Plastic hoods decoration of supply and exhaust vents of public, residential and industrial ventilation systems |

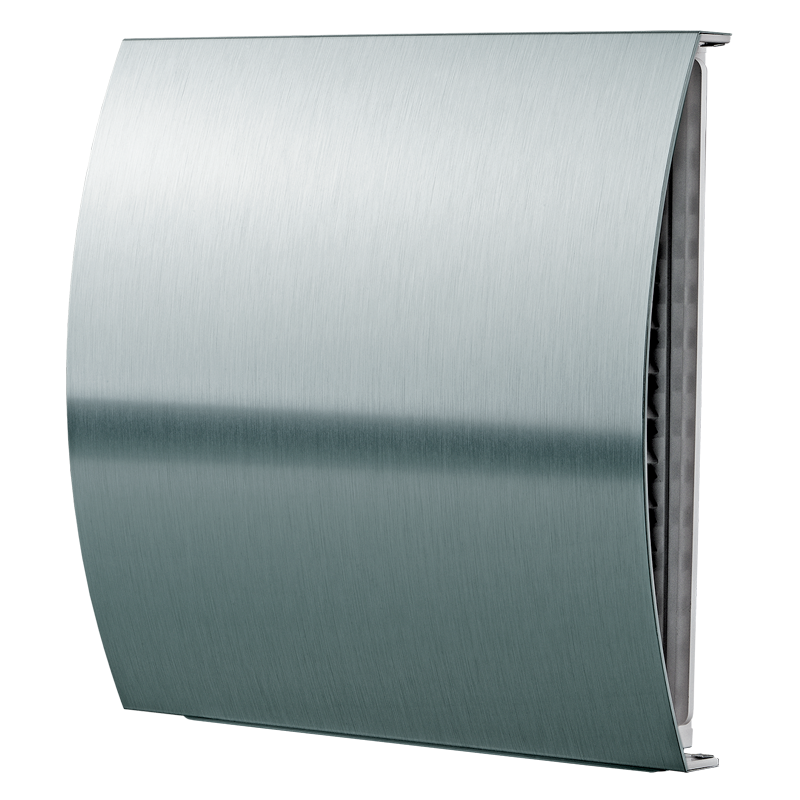

| Blauberg AH-10 chrome 160 |
|
Plastic hoods decoration of supply and exhaust vents of public, residential and industrial ventilation systems |

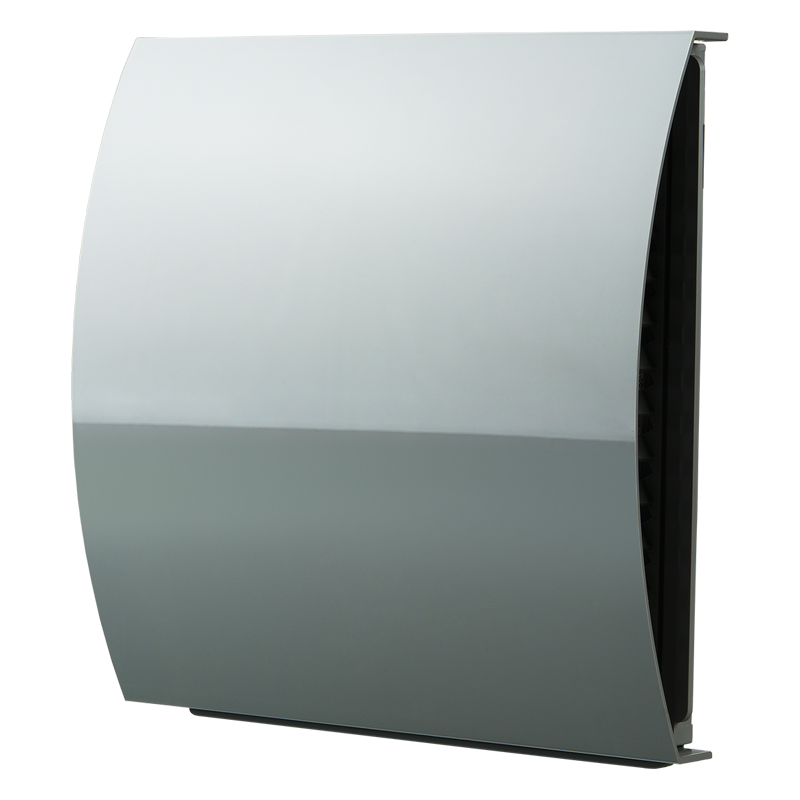

| Blauberg AH-10 grey 160 |
|
Plastic hoods decoration of supply and exhaust vents of public, residential and industrial ventilation systems |

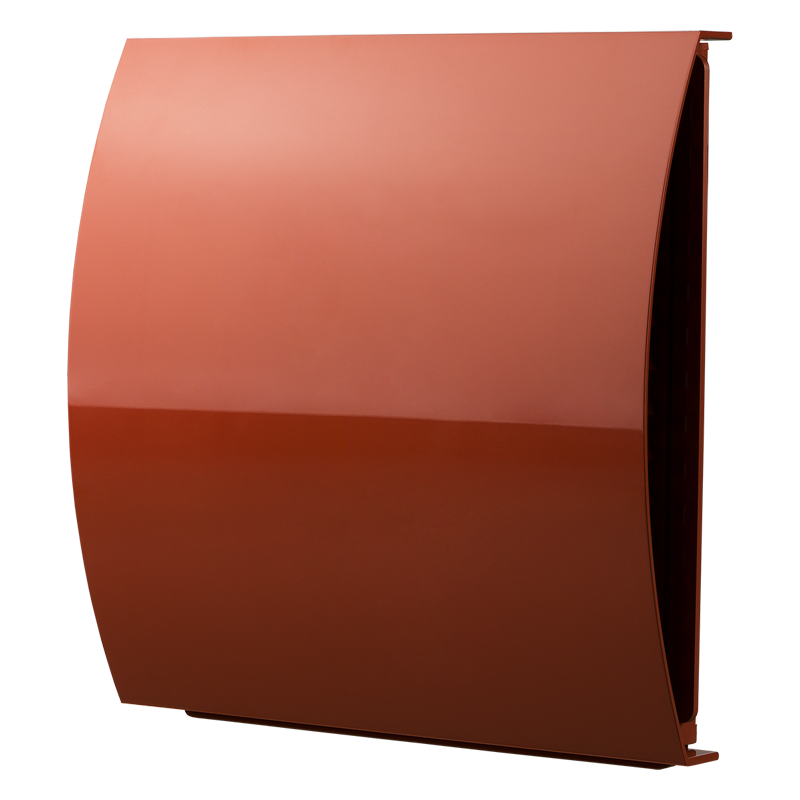

| Blauberg AH-10 terracotta 160 |
|
Plastic hoods decoration of supply and exhaust vents of public, residential and industrial ventilation systems |

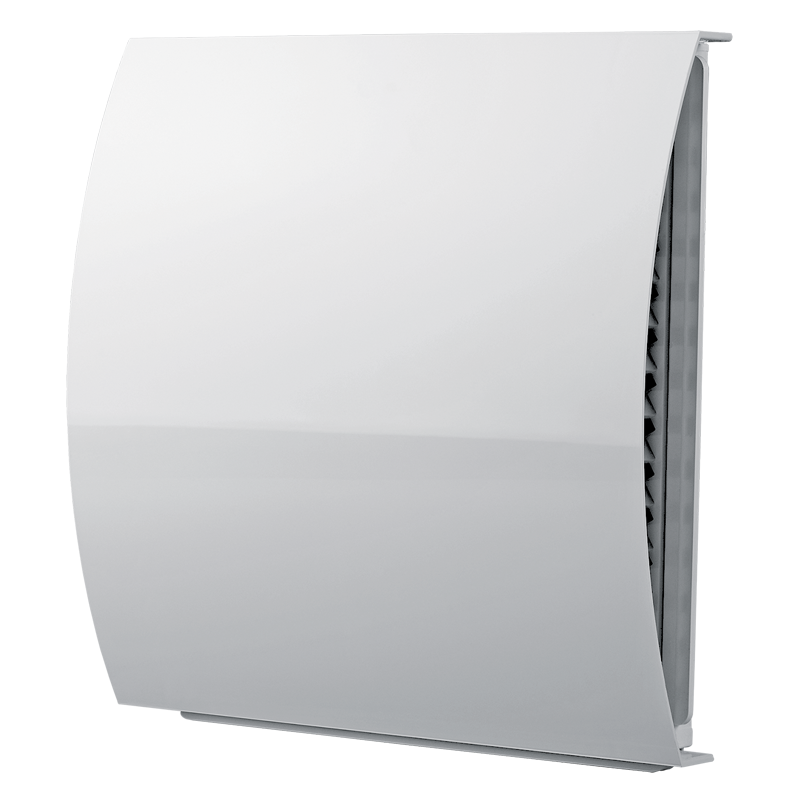

| Blauberg AH-10 white 160 |
|
Plastic hoods decoration of supply and exhaust vents of public, residential and industrial ventilation systems |

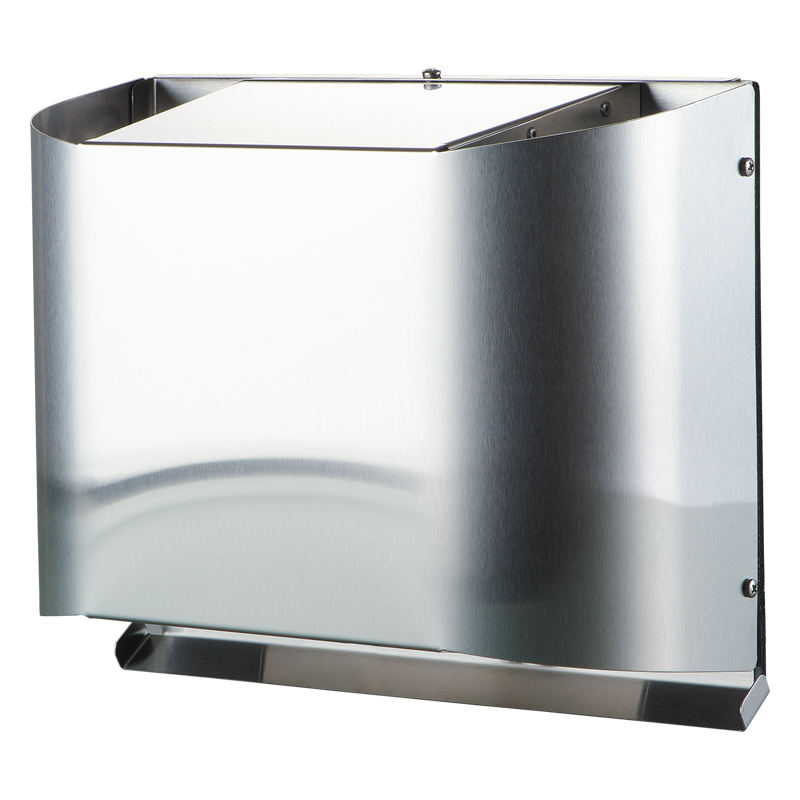

| Blauberg AH-S chrome 150 |
|
Stainless steel ventilation hood |

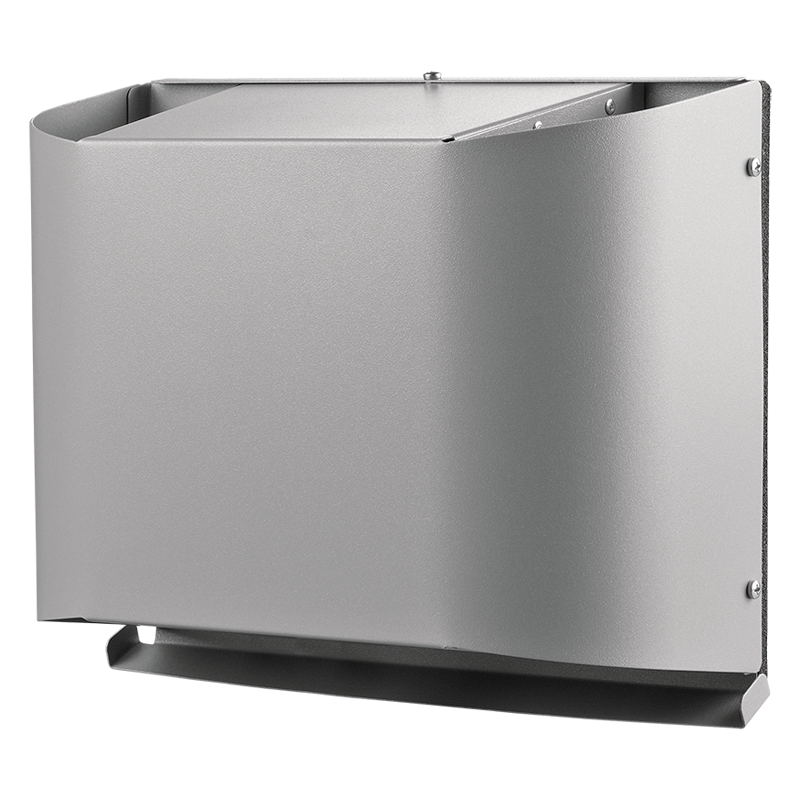

| Blauberg AH-S grey 150 |
|
Stainless steel ventilation hood |
| Name | Photo | Description |
|---|---|---|

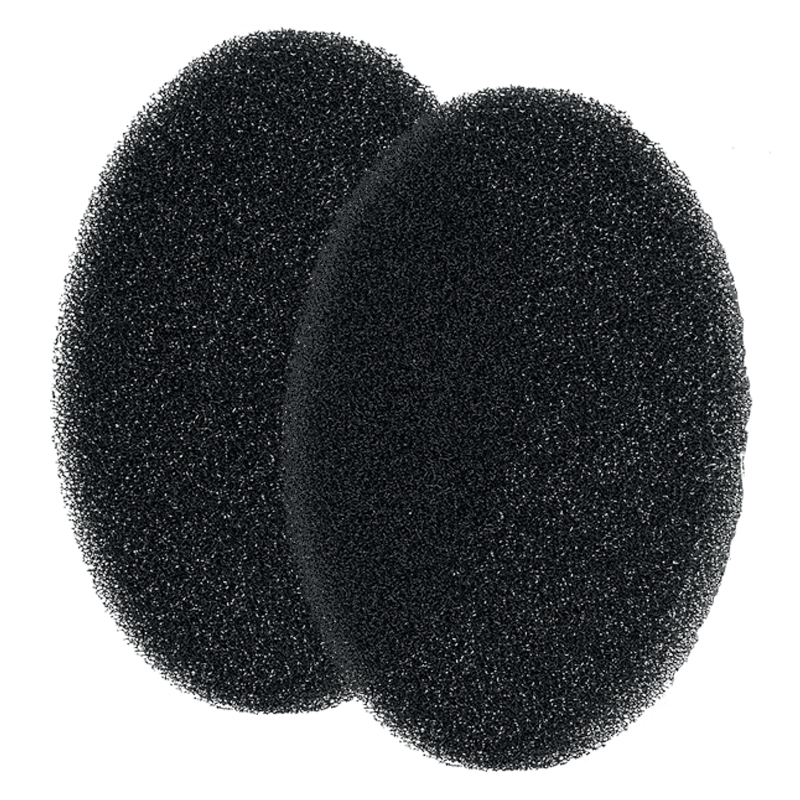

| Blauberg FP Vento Ergo A50 G3 |
|
G3 filters (2 pcs.) |

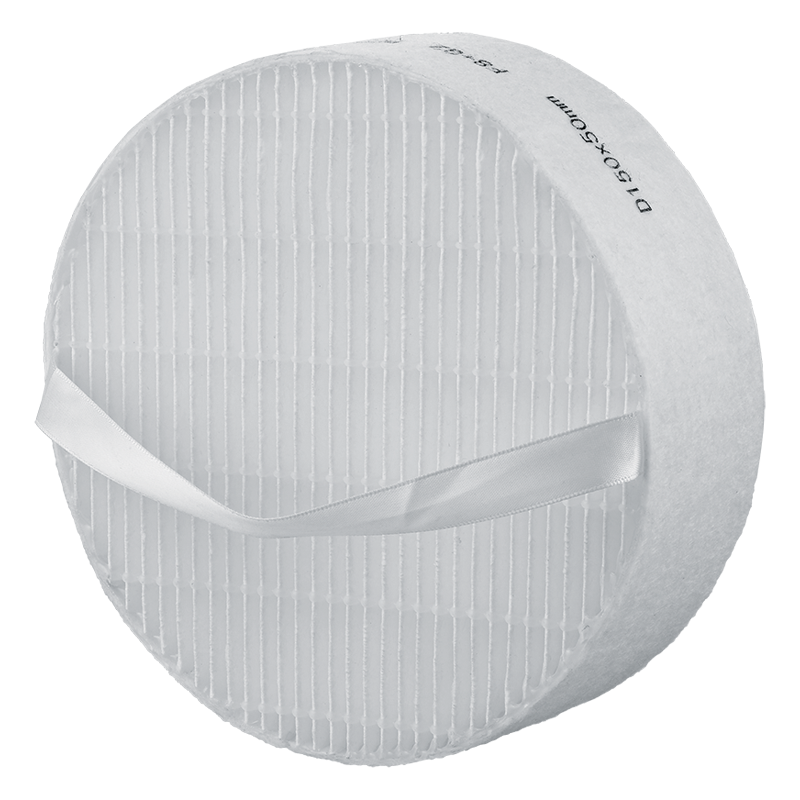

| Blauberg FPC 150x50 G4 |
|
Filter |

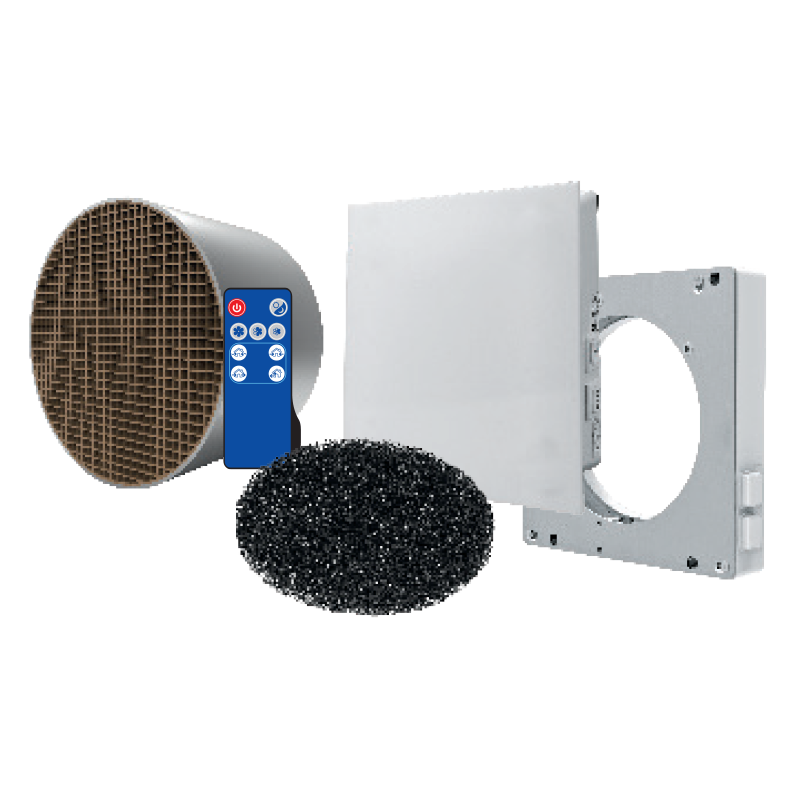

| Blauberg Completion Kit Vento Ergo A50(85)-1 Pro V.3 |
|
|

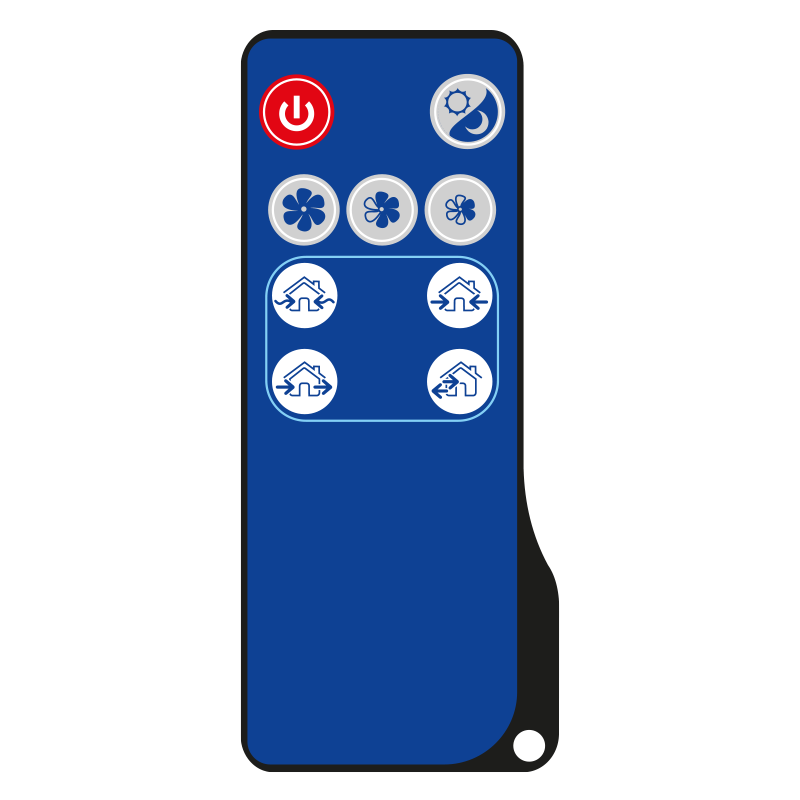

| Blauberg FB Vento Ergo |
|
Remote control |
| Name | Photo | Description |
|---|---|---|

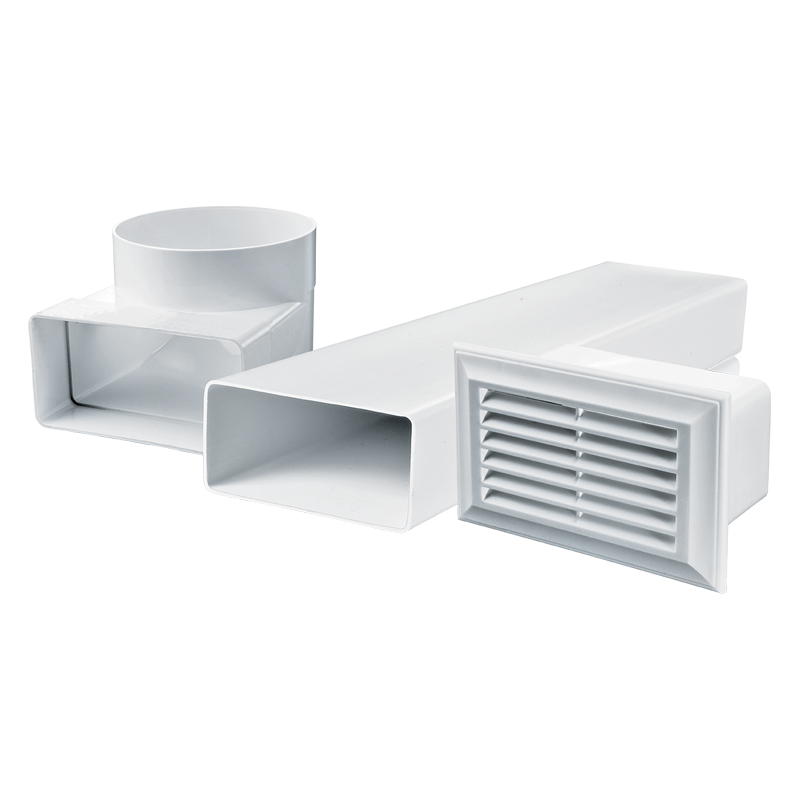

| Blauberg KIT BlauPlast 204x60-1 |
|
Kit for angular mounting (for walls with standard thickness) |
