| Unit of measurement | Tower-AM 315 | |
| Connected air duct size | mm | 315 |
| Phases | - | 1 |
| Maximum supply voltage | V | 240 |
| Minimum supply voltage | V | 220 |
| Power supply frequency | Hz | 50 |
| Rated power | W | 296 |
| Unit current | A | 1.34 |
| Maximum airflow | m³/h | 1880 |
| Rotation speed at 50hz | - | 2720 |
| Sound pressure level LpA at 3 m | dB(A) | 54 |
| Weight | kg | 12.3 |
| Transported air temperature (max) | °С | 45 |
| Transported air temperature (min) | °С | -25 |
| Ingress protection rating | - | IPX4 |
| Ingress protection rating of the drive | - | IP44 |
| Impeller material | - | Plastic |
| Size | mm | 315 |
| Trademark | Blauberg |
| Model | Tower-AM 315 |
| Type of ventilation unit | Unidirectional |
| Type of drive installed | External MSD or VSD |
| Type of heat recovery system | None |
| Nominal external pressure (Pa) | 428 |
| Maximum external leakage rates (%) | 2.7 |
| Static efficiency (%) | 36.2 |
| Sound power level (dB(A)) | 74 |
| Effective electric power input (kW) | 0.269 |
| Declared typology | NRVU UVU |

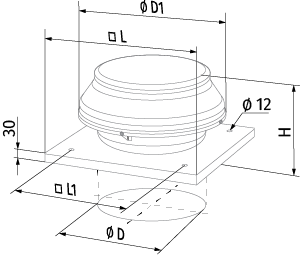

| ØD | ØD1 | H | L | L1 |
|---|---|---|---|---|
| 315 | 550 | 339 | 590 | 450 |
| Name | Photo | Description |
|---|---|---|
| Blauberg CDR5E E3.5 TP |
|
Single phase speed controller |
| Blauberg CDR5E E5.0 TP |
|
Single phase speed controller |
| Blauberg CDR5E E7.5 TP |
|
Single phase speed controller |
| Blauberg CDR5E E1.5 TP |
|
Single phase speed controller |
