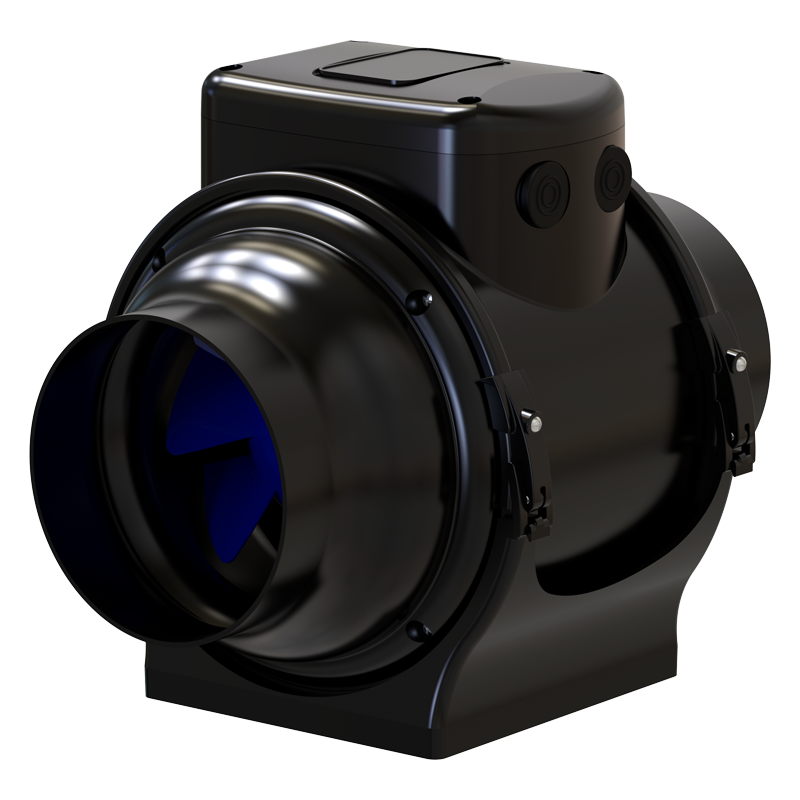

/ Product catalogue / Commercial and industrial ventilation / Inline fans / For round duct / Primo / Primo 125
| Unit of measurement | Primo 125 | |||
| Speed | - | 1 | 2 | 3 |
| Connected air duct size | mm | 125 | ||
| Phases | - | 1 | ||
| Minimum supply voltage | V | 230 | ||
| Maximum supply voltage | V | 230 | ||
| Power supply frequency | Hz | 50 | ||
| Rated power | W | 8 | 12 | 23 |
| Unit current | A | 0.80 | 0.90 | 0.10 |
| Maximum airflow | m³/h | 174 | 241 | 350 |
| Rotation speed at 50hz | - | 1865 | 2492 | 2796 |
| Sound pressure level LpA at 3 m | dB(A) | 20 | 22 | 25 |
| Weight | kg | 3.68 | ||
| Transported air temperature (max) | °С | 55 | ||
| Transported air temperature (min) | °С | -25 | ||
| Ingress protection rating | - | IPX4 | ||
| Ingress protection rating of the drive | - | IP20 | ||
| Impeller material | - | Plastic | ||
| A | B | C | ∅ D |
|---|---|---|---|
| 242 | 300 | 226 | 125 |
