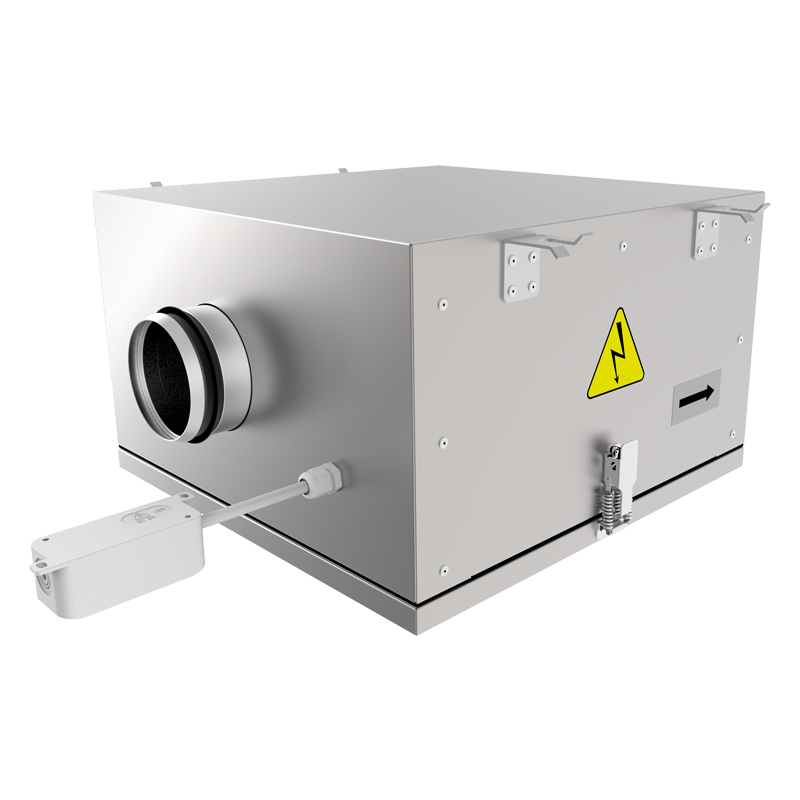

Blauberg Iso-RB 450 L

Centrifugal inline fans with backward curved blades in cases with improved sound insulation properties

	Unit of measurement	Iso-RB 450 L
Connected air duct size	mm	450
Phases	-	1
Minimum supply voltage	V	230
Maximum supply voltage	V	230
Power supply frequency	Hz	50
Rated power	W	482
Unit current	A	2.13
Maximum airflow	m³/h	3750
Rotation speed at 50hz	-	1350
Sound pressure level LpA at 3 m	dB(A)	50
Weight	kg	84
Transported air temperature (max)	°С	55
Transported air temperature (min)	°С	-25
Ingress protection rating	-	IPX4
Ingress protection rating of the drive	-	IP54
Impeller material	-	Aluminium

Trademark	Blauberg
Model	Iso-RB 450 L
Type of ventilation unit	Unidirectional
Type of drive installed	External MSD or VSD
Type of heat recovery system	None
Nominal external pressure (Pa)	422
Maximum external leakage rates (%)	2.7
Static efficiency (%)	43
Declared typology	NRVU UVU
Effective electric power input (kW)	0.473
Sound power level (dB(A))	68
