/ Product catalogue / Commercial and industrial ventilation / Inline fans / For round duct / Iso-Primo / Iso-Primo 400 G1| Unit of measurement | Iso-Primo 400 G1 | |||
| Speed | - | 1 | 2 | 3 |
| Connected air duct size | mm | 400 | ||
| Phases | - | 1 | ||
| Maximum supply voltage | V | 230 | ||
| Minimum supply voltage | V | 230 | ||
| Power supply frequency | Hz | 50 | ||
| Rated power | W | 197 | 204 | 224 |
| Unit current | A | 0.91 | 0.90 | 0.98 |
| Maximum airflow | m³/h | 2543 | 2979 | 3185 |
| Rotation speed at 50hz | - | 1320 | 1390 | 1446 |
| Sound pressure level LpA at 3 m | dB(A) | 34 | 35 | 37 |
| Weight | kg | 22.8 | ||
| Transported air temperature (max) | °С | 55 | ||
| Transported air temperature (min) | °С | -25 | ||
| Ambient air temperature max | °С | 40 | ||
| Ambient air temperature min | °С | 1 | ||
| Ingress protection rating | - | IPX4 | ||
| Ingress protection rating of the drive | - | IP20 | ||
| Impeller material | - | Plastic | ||

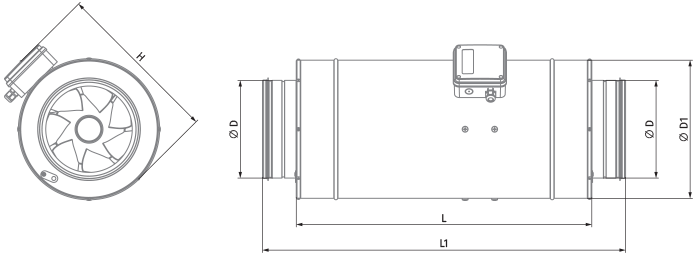

| Ø D | Ø D1 | H | L | L1 |
|---|---|---|---|---|
| 399 | 460 | 517 | 648 | 785 |
