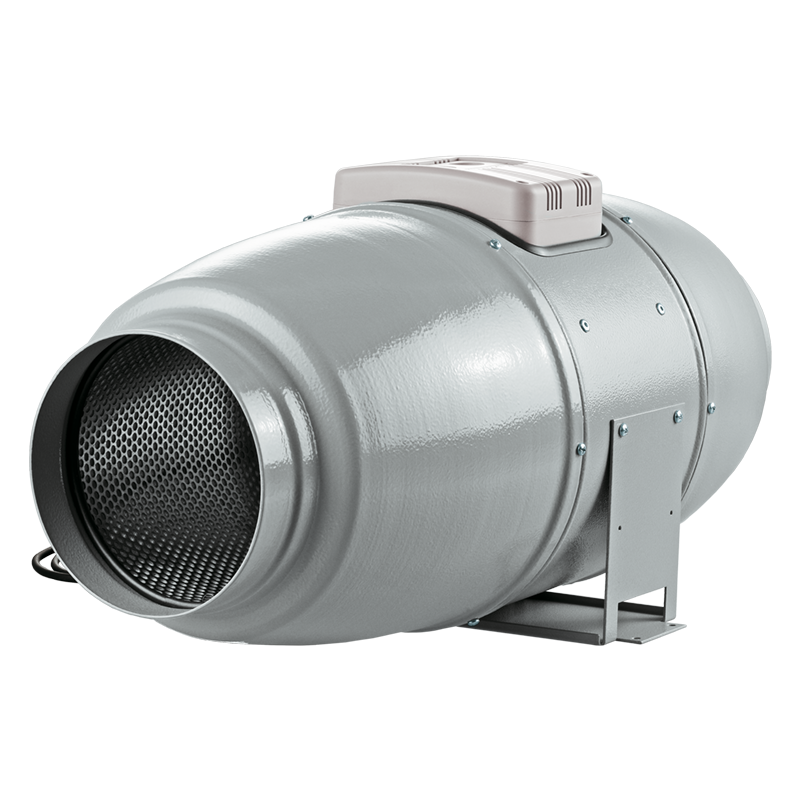

Blauberg Iso-Mix EC 250

Mixed-flow inline fans in sound-insulated casings with EC-motors

	Unit of measurement	Iso-Mix EC 250
Connected air duct size	mm	250
Phases	-	1
Minimum supply voltage	V	230
Maximum supply voltage	V	230
Power supply frequency	Hz	50/60
Rated power	W	169
Unit current	A	1.38
Maximum airflow	m³/h	1285
Rotation speed at 50hz	-	2870
Sound pressure level LpA at 3 m	dB(A)	42
Weight	kg	12.5
Transported air temperature (max)	°С	55
Transported air temperature (min)	°С	-25
Ingress protection rating	-	IPX4
Impeller material	-	Plastic

Trademark	Blauberg
Model	Iso-Mix EC 250
Type of ventilation unit	Unidirectional
Type of drive installed	Integrated VSD
Type of heat recovery system	None
Nominal external pressure (Pa)	234
Maximum external leakage rates (%)	2.7
Static efficiency (%)	34.8
Sound power level (dB(A))	62
Effective electric power input (kW)	0.169
Declared typology	NRVU UVU
