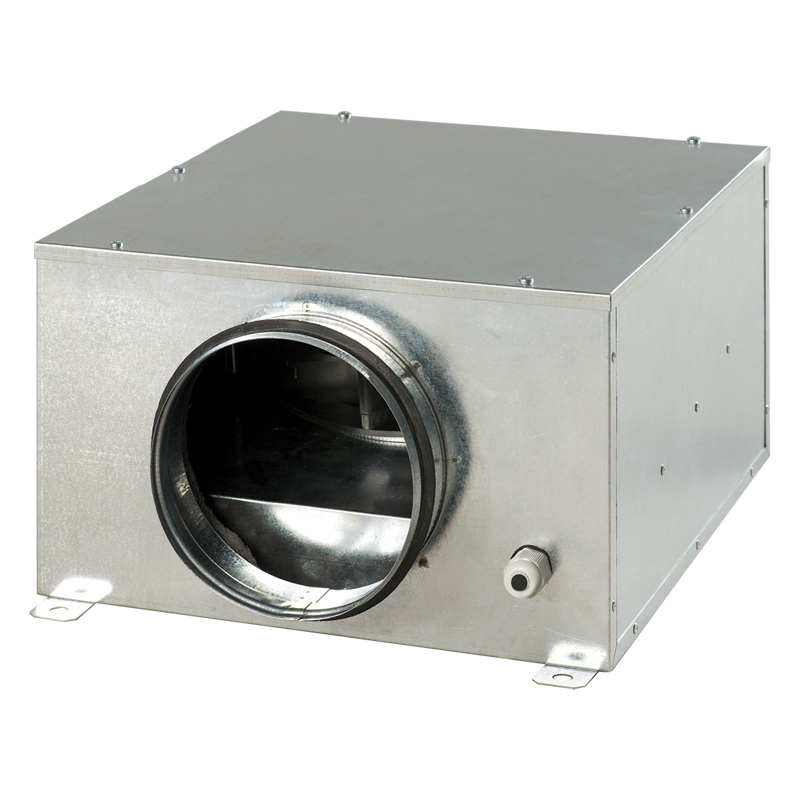

/ Product catalogue / Commercial and industrial ventilation / Inline fans / For round duct / Iso-B EC / Iso-B EC 315
| Unit of measurement | Iso-B EC 315 | |
| Connected air duct size | mm | 315 |
| Phases | - | 1 |
| Minimum supply voltage | V | 230 |
| Maximum supply voltage | V | 230 |
| Power supply frequency | Hz | 50/60 |
| Rated power | W | 164.3 |
| Unit current | A | 1.35 |
| Maximum airflow | m³/h | 1260 |
| Rotation speed at 50hz | - | 2620 |
| Sound pressure level LpA at 3 m | dB(A) | 42 |
| Transported air temperature (max) | °С | 60 |
| Transported air temperature (min) | °С | -25 |
| Ingress protection rating | - | IPX4 |
| Ingress protection rating of the drive | - | IP55 |
| Impeller material | - | Plastic |
| Trademark | Blauberg |
| Model | Iso-B EC 315 |
| Type of ventilation unit | Unidirectional |
| Type of drive installed | Integrated VSD |
| Type of heat recovery system | None |
| Nominal external pressure (Pa) | 285 |
| Maximum external leakage rates (%) | 2.7 |
| Static efficiency (%) | 40.8 |
| Declared typology | NRVU UVU |
| Effective electric power input (kW) | 0.164 |
| Sound power level (dB(A)) | 62 |

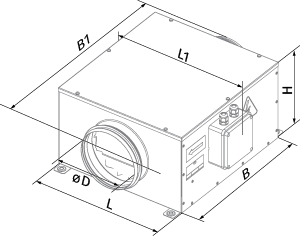

| ØD | L | L1 | B | B1 | H |
|---|---|---|---|---|---|
| 314 | 435 | 560 | 545 | 650 | 405 |
| Name | Photo | Description |
|---|---|---|
| Blauberg CDT E/0-10 |
|
Speed control for EC motors |
