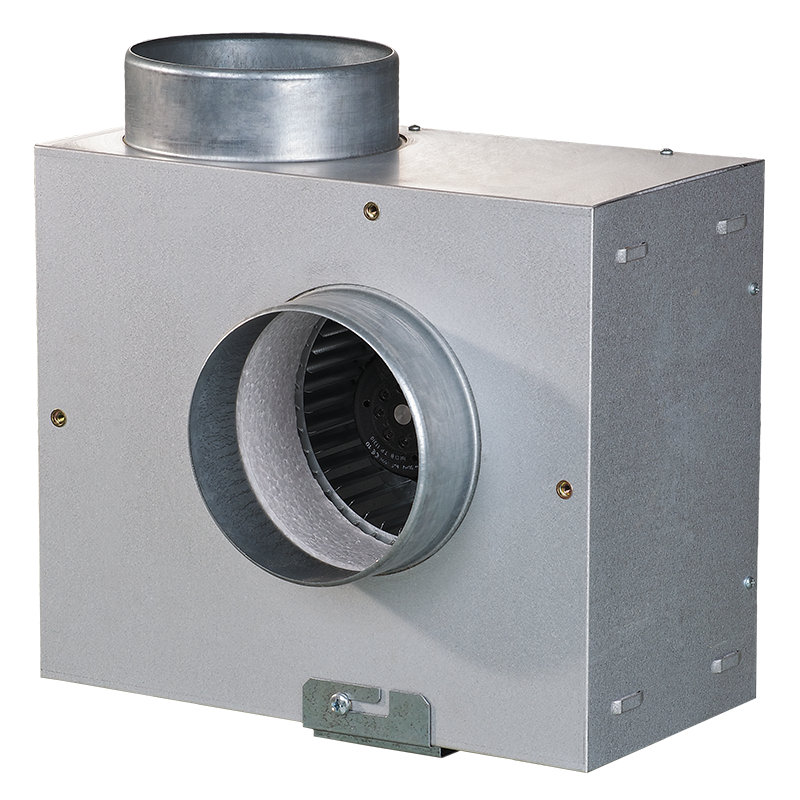

Blauberg Iso 160-2E

Centrifugal inline fans with forward curved blades in sound-insulated casings

	Unit of measurement	Iso 160-2E
Connected air duct size	mm	160
Phases	-	1
Minimum supply voltage	V	230
Maximum supply voltage	V	230
Power supply frequency	Hz	50
Rated power	W	335
Unit current	A	1.5
Maximum airflow	m³/h	750
Rotation speed at 50hz	-	2870
Sound pressure level LpA at 3 m	dB(A)	37	9
Weight	kg	6.28
Transported air temperature (max)	°С	40
Transported air temperature (min)	°С	-25
Ingress protection rating	-	IPX2
Ingress protection rating of the drive	-	IP44
Impeller material	-	Galvanized steel

Trademark	Blauberg
Model	Iso 160-2E
Specific energy consumption (SEC) (kWh/(m²/a))	Cold		Average		Warm
	-49.6	A+	-22.5	D	-7	F
Type of ventilation unit	Unidirectional
Type of drive installed	Variable speed
Type of heat recovery system	None
Maximum flow rate (m³/h)	715
Electric power input (W)	313
Reference flow rate (m³/s)	0.139
Reference pressure difference (Pa)	50
Specific power input (SPI) (W/(m³/h))	0.438
Control typology	Local demand control
Maximum external leakage rates (%)	2.7
Declared typology	RVU UVU
Sound power level (dB(A))	58
The annual electricity consumption (AEC) (kWh/a)	Cold		Average		Warm
	232		232		232
The annual heating saved (AHS) (kWh/a)	Cold		Average		Warm
	5536		2830		1280
